The Working Principles of Gear Hydraulic Systems

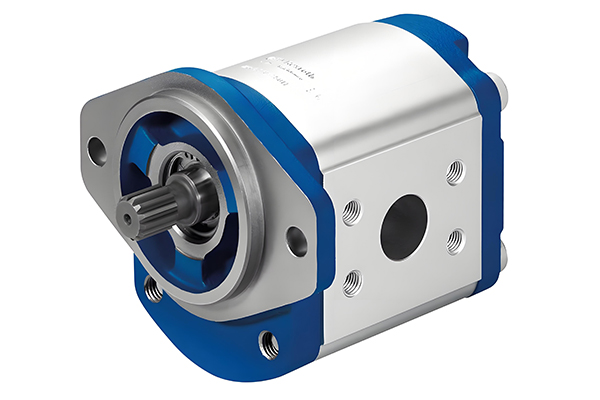

As the gears continue to rotate, the fluid becomes trapped between the teeth of the gears and the pump housing. This fluid is then carried around the outer perimeter of the gears from the inlet side to the outlet side. Importantly, the meshing of the gears at the center of the pump prevents fluid from flowing backward from the discharge side to the suction side.

When the gears reach the outlet side of the pump, the meshing action of the teeth reduces the volume between them, forcing the trapped fluid out through the outlet port. This process creates a continuous flow of fluid as long as the gears are rotating. The pressure generated by gear oil pumps of this type is determined by the resistance to flow in the hydraulic system downstream of the pump.

One of the key advantages of external gear pumps is their ability to handle a wide range of viscosities, making them versatile in different applications. They also provide a relatively steady flow rate, although there is some pulsation due to the discrete nature of the gear teeth transferring fluid. Manufacturers minimize this pulsation by designing gears with a greater number of teeth or using special tooth profiles.

The efficiency of external gear pumps depends on several factors, including the precision of the gear meshing, the clearance between the gears and the housing, and the viscosity of the fluid being pumped. Tighter clearances generally improve efficiency but require more precise manufacturing and may be unsuitable for fluids containing particulate matter.

In terms of performance characteristics, gear oil pumps of the external type typically produce a flow rate that is directly proportional to their rotational speed. This linear relationship makes them easy to control in systems where variable flow rates are required. The pressure capability is primarily limited by the strength of the pump housing and the bearing design.

External gear pumps are widely used in applications such as machine tools, hydraulic presses, construction equipment, and automotive systems. Their compact size, simplicity, and cost-effectiveness make them a popular choice for these and many other industrial uses. Proper maintenance, including regular oil changes and monitoring for leaks, ensures long service life for these reliable gear oil pumps.

Modern advancements in materials and manufacturing techniques have further improved the performance of external gear pumps. High-strength alloys and advanced polymers allow these pumps to operate at higher pressures and temperatures than ever before, while precision machining techniques ensure tighter tolerances and improved efficiency. These improvements have expanded the range of applications where external gear pumps can be effectively used.

A distinctive feature of many internal gear pumps is the crescent-shaped separator that fits between the inner and outer rotors in some designs. This crescent maintains the proper clearance between the rotors and helps to seal the fluid chambers as they move from the inlet to the outlet side of the pump. Not all internal gear pumps include this crescent, however, as some designs rely on the precise meshing of the gears themselves to create the necessary fluid separation.

The operating principle of internal gear pumps begins as the rotors start to rotate. As the inner and outer rotors separate at the inlet port, they create expanding cavities that draw fluid into the pump. This is similar to the suction phase in external gear pumps but occurs differently due to the internal meshing design.

As rotation continues, the fluid becomes trapped in the spaces between the teeth of the inner and outer rotors. These fluid pockets move around the circumference of the pump, guided by the housing or crescent separator. Unlike external gear oil pumps, where fluid is carried around the outside of the gears, internal gear pumps carry fluid between the rotating elements themselves.

When the fluid-filled pockets reach the outlet side of the pump, the meshing of the rotor teeth reduces the available volume, forcing the fluid out through the discharge port. This meshing action effectively seals the pump, preventing fluid from flowing back to the inlet side.

One of the key advantages of internal gear pumps is their smooth operation with minimal pulsation. This makes them particularly suitable for applications where steady fluid flow is important. They also handle viscous fluids well, making them ideal for certain industrial processes where thicker oils or fluids must be pumped.

Internal gear pumps are often more compact than their external counterparts of similar capacity, making them valuable in applications where space is limited. They also typically offer better priming capabilities, meaning they can more easily start pumping after being filled with air, which is a significant advantage in many systems.

Like other gear oil pumps, the efficiency of internal gear pumps depends on maintaining proper clearances between moving parts. Wear can increase these clearances over time, reducing efficiency and potentially causing internal leakage. However, their design generally allows for longer service life compared to some other pump types, especially when handling clean fluids.

Applications for internal gear pumps include fuel transfer systems, lube oil circulation, hydraulic power units, and various industrial processing systems. Their ability to handle a wide range of viscosities and provide smooth flow makes them versatile in many different environments.

Modern internal gear pump designs have benefited from computer-aided engineering, allowing for optimized rotor profiles that improve efficiency and reduce noise. Materials science advancements have also contributed to better wear resistance and extended service intervals, making these gear oil pumps even more attractive for critical applications.

The operational principle of a gear motor begins with high-pressure hydraulic fluid entering the motor through the inlet port. This pressurized fluid acts on the surfaces of the gear teeth that are not yet meshed. The force exerted by the fluid on these teeth creates a torque that causes both gears to rotate.

As the gears rotate, the fluid is carried around the housing (in external gear motors) or between the inner and outer rotors (in internal gear motors) to the outlet side of the motor. On the outlet side, the fluid is at lower pressure, allowing it to exit through the outlet port and return to the hydraulic reservoir.

A critical aspect of gear motor design is ensuring proper sealing between high-pressure and low-pressure regions. This is typically achieved through close tolerances between the gears and housing, as well as between the gear faces and end plates. Effective sealing is essential for maximizing efficiency, as any leakage between high and low pressure regions represents lost energy.

Unlike gear oil pumps, which are designed to maintain consistent flow, gear motors are designed to provide consistent torque output. The torque produced by a gear motor is directly proportional to the pressure differential across the motor (inlet pressure minus outlet pressure) and the motor's displacement volume.

Displacement volume refers to the amount of fluid that passes through the motor for each complete revolution of the output shaft. Motors with larger displacement volumes produce more torque but operate at lower speeds for a given flow rate, while smaller displacement motors produce less torque but can achieve higher speeds.

The speed of a gear motor is primarily determined by the flow rate of fluid entering the motor. Higher flow rates result in higher rotational speeds, while lower flow rates produce slower speeds. This relationship allows for precise speed control in hydraulic systems by regulating the flow of fluid to the motor.

Gear motors offer several advantages in hydraulic systems. They are compact, robust, and capable of operating over a wide range of speeds. They also provide good torque characteristics, including high starting torque, which is important in many applications. Like their gear oil pumps counterparts, gear motors are relatively simple in design, making them cost-effective and easy to maintain.

However, gear motors do have some limitations. They tend to be less efficient than other types of hydraulic motors, particularly at partial loads. They also produce more noise than some alternatives, especially at higher speeds. Additionally, their output is not perfectly smooth, with some torque pulsation inherent in their operation due to the discrete nature of the gear teeth interaction.

Applications for gear motors are widespread across many industries. They are commonly found in agricultural machinery, construction equipment, material handling systems, and industrial automation. Their ability to provide reliable rotational motion in a compact form factor makes them ideal for these and many other applications where hydraulic power is available.

When selecting a gear motor for a specific application, engineers must consider several factors including required torque, speed range, operating pressure, fluid viscosity, and environmental conditions. Proper matching of the motor to the application ensures optimal performance, efficiency, and service life.

Advances in gear motor technology have focused on improving efficiency and reducing noise levels. Modern designs incorporate optimized gear profiles, advanced materials, and improved bearing systems to address these concerns. These improvements have expanded the range of applications where gear motors can be effectively utilized, often as complementary components to gear oil pumps in complete hydraulic systems.
